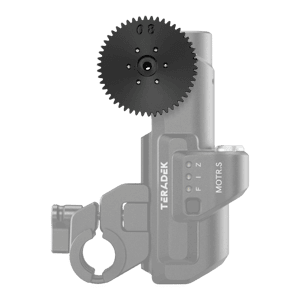

Teradek Lens Gear Set for MOTR.S/MAX

This Lens Gear Set for MOTR.S/MAX includes variations of gears to work with varying lens gear pitches. The wide surface area of these gears provides a larger interface for lens barrels that move through an extended focus or zoom range. This set features 6 gears and locking screws with variable teeth count and widths that are compatible with the focus, iris, and/or zoom rings on select cine and/or ENG lenses.

• Large Gear - 0.8 Mod, 80 Teeth, 6mm width: Features a 6mm width and 80 teeth, and it is compatible with the focus, iris, and/or zoom rings on select cine and/or ENG lenses.
• Standard Gear - 0.8 Mod, 50 Teeth, 7mm width: Features a 7mm width and 50 teeth, and it is compatible with the focus, iris, and/or zoom rings on select cine and/or ENG lenses.
• Thick Gear - 0.8 Mod, 50 Teeth, 12mm width: Features a 12mm width and 50 teeth, and it is compatible with the focus, iris, and/or zoom rings on select cine and/or ENG lenses.
• Super Thick Gear - 0.8 Mod, 50 Teeth, 24mm width: Features a 24mm width and 50 teeth, and it is compatible with the focus, iris, and/or zoom rings on select cine and/or ENG lenses.
• Iris (64pitch) Gear - 0.4 Mod, 100 Teeth, 7mm width for ENG Cameras and PV Iris: Features a 7mm width and 100 teeth, and it is compatible with the focus, iris, and/or zoom rings on select cine and/or ENG lenses.
• Canon ENG Gear - 0.5 Mod, 80 Teeth, 7mm width: Features a 7mm width and 100 teeth, and it is compatible with the focus, iris, and/or zoom rings on select cine and/or ENG lenses.
• Fuji ENG / PV Zoom Gear - 0.6 Mod, 66 Teeth, 7mm width: Features a 7mm width and 100 teeth, and is compatible with the focus, iris, and/or zoom rings on select cine and/or ENG lenses.
